Module
NCG-1-D

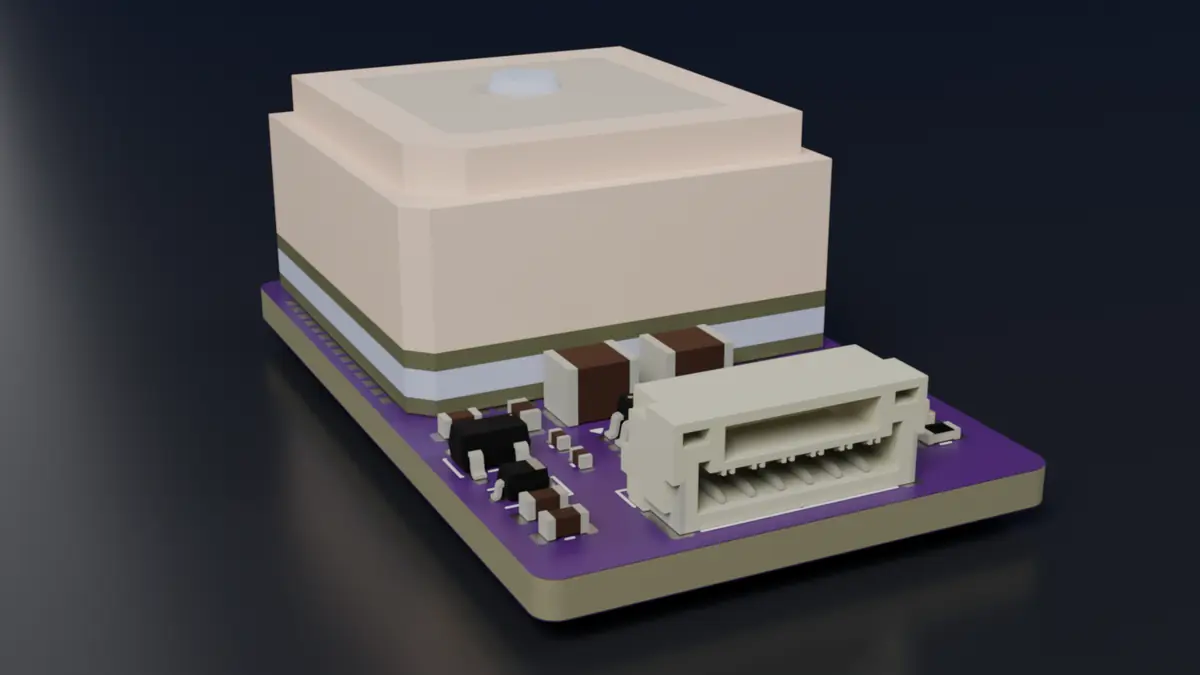

L1/L5 dual-band GNSS receiver with compass
rev AQUOTING
NCG-1 and NCG-1-D are in development. Shipping dates will be announced.
- Receiver
- u-blox DAN-F10N · L1/L5
- Outline
- 36.0 × 22.0 mm
- Interfaces
- —
- Price band
- USD 120–150 · target
Request a quoteDatasheet —
Specifications
| Specification | Value | Source |
|---|---|---|
| Receiver | u-blox DAN-F10N · L1/L5 dual-band | R |
| Constellations | — | |
| Antenna | — | |

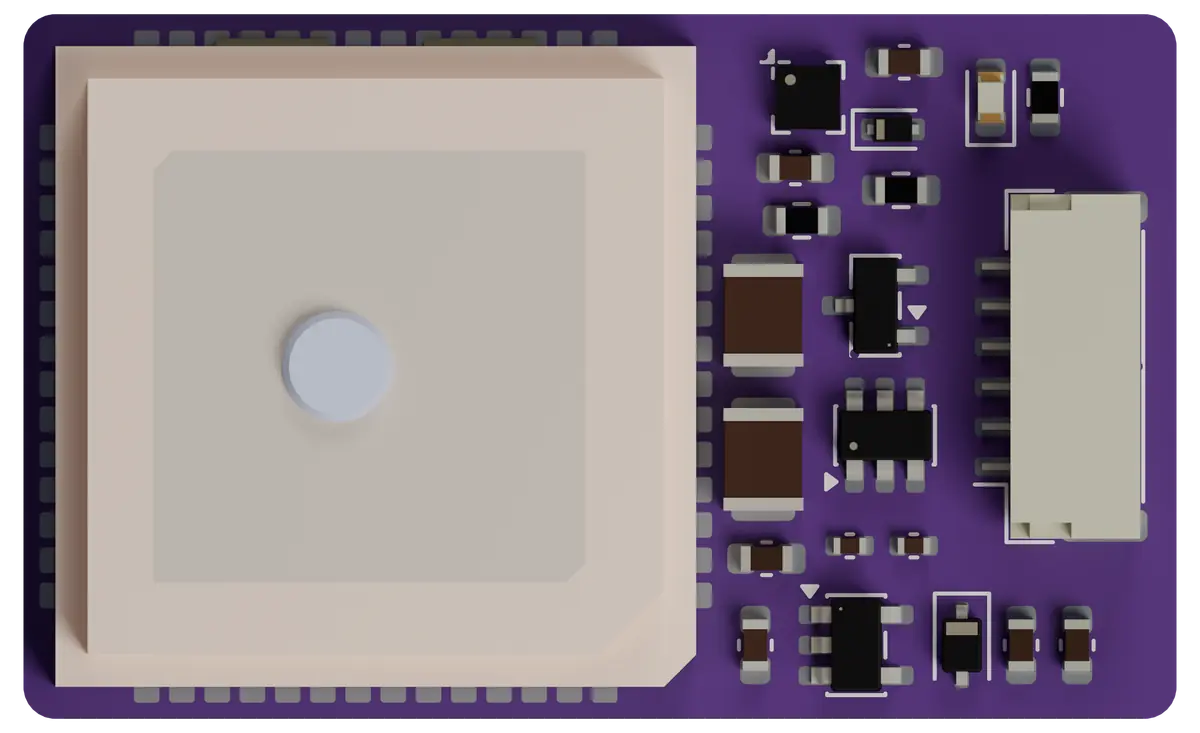

| Compass | ST IIS2MDC · I²C | D |
| Receiver interface | UART only | R |
| Default UART | — | |
| Connector | JST GH 6-pin | D |
| Input | 5 V | D |
| Backup | — | |
| Dimensions | 36.0 × 22.0 mm | D |
| Height | — | |
| Mass | — | |
| Board | — | |
| Operating temperature | — | |
| Firmware targets | — |
R — u-blox receiver datasheet · C — calculated · D — design value, rev A production package
Pinout
Harness is identical to NCG-1; the receiver is UART-only.
| Pin | Name | Notes |
|---|---|---|
| 1 | 5V | Supply from the flight controller; onboard 3.3 V LDO, TVS-protected |
| 2 | TX | Flight controller transmits, module receives (module RXD) |
| 3 | RX | Module transmits, flight controller receives (module TXD) |
| 4 | SCL | I²C clock, compass |
| 5 | SDA | I²C data, compass |
| 6 | GND | Ground return |
4-channel ESD array on TX/RX/SCL/SDA. Pin 1 is nearest the power corner; the pinout figure is a top view. Matek/ArduPilot order.
Firmware defaults
—
- ArduPilot
- —
- PX4
- —
- Betaflight
- —
- INAV
- —
Per-stack parameters are published after first-article bench test.
Downloads
- Datasheet————
- Pinout (SVG)————
- Mechanical outline (SVG)————
- Top placement (SVG)————
- Block diagram (SVG)————
- STEP model————
Engineering drawings
Figure pending first article
Variant · NCG-1 · L1 GNSS receiver with compass
Tell us what you are building
Quantity band, target date and program type are enough to start. Lead time is quoted with the contract manufacturer.
